Average Latency Feedback

Overview

Degradation in response latency can serve as a reliable signal for identifying service overload. This policy is designed to detect overload situations based on latency deterioration. During overload, the request rate is throttled so that latency gets restored back to an acceptable range.

Configuration

This policy is based on the Load Scheduling with Average Latency Feedback blueprint. The latency of requests processed by the cart-service.prod.svc.cluster.local service is monitored. By analyzing the variance between current latency and a historical latency baseline, the policy facilitates the identification of potential service overload. A deviation of 1.1 from the baseline is considered as a signal of service overload.

In addition, workload prioritization is specified in the load scheduler based on user types accessing the service. User types are identified based on the value of a header label http.request.header.user_type. Requests matching label value guest are assigned a priority of 50, whereas those matching subscriber are given a priority of 200.

To mitigate service overload, the requests to the cart-service.prod.svc.cluster.local service are passed through a load scheduler. The load scheduler reduces the request rate in overload scenarios, temporarily placing excess requests in a queue.

As service latency improves, indicating a return to normal operational state, the request rate is incrementally increased until it matches the incoming request rate. This responsive mechanism helps ensure that service performance is optimized while mitigating the risk of service disruptions due to overload.

The below values.yaml file can be generated by following the steps in the Installation section.

aperturectl values.yaml

# yaml-language-server: $schema=../../../../../../blueprints/load-scheduling/average-latency/gen/definitions.json
# Generated values file for load-scheduling/average-latency blueprint
# Documentation/Reference for objects and parameters can be found at:
# https://docs.fluxninja.com/reference/blueprints/load-scheduling/average-latency

blueprint: load-scheduling/average-latency
uri: ../../../../../../../blueprints
policy:
  # Name of the policy.
  # Type: string
  # Required: True
  policy_name: workload-prioritization
  # List of additional circuit components.
  # Type: []aperture.spec.v1.Component
  components: []
  load_scheduling_core:
    aimd_load_scheduler:
      gradient:
        max_gradient: 1
        min_gradient: 0.1
        slope: -1
      alerter:
        alert_name: AIMD Load Throttling Event
      load_multiplier_linear_increment: 0.025
      max_load_multiplier: 2
      load_scheduler:
        # The selectors determine the flows that are protected by this policy.
        # Type: []aperture.spec.v1.Selector
        # Required: True
        selectors:
          - control_point: ingress
            service: cart-service.prod.svc.cluster.local
        # Scheduler parameters.
        # Type: aperture.spec.v1.SchedulerParameters
        scheduler:
          workloads:
            - label_matcher:
                match_labels:
                  http.request.header.user_type: guest
              parameters:
                priority: 50.0
            - label_matcher:
                match_labels:
                  http.request.header.user_type: subscriber
              parameters:
                priority: 200.0
  latency_baseliner:
    # Tolerance factor beyond which the service is considered to be in overloaded state. E.g. if the long-term average of latency is L and if the tolerance is T, then the service is considered to be in an overloaded state if the short-term average of latency is more than L*T.
    # Type: float64
    latency_tolerance_multiplier: 1.1
    # Flux Meter defines the scope of latency measurements.
    # Type: aperture.spec.v1.FluxMeter
    # Required: True
    flux_meter:
      selectors:
        - control_point: ingress
          service: cart-service.prod.svc.cluster.local

Generated Policy

apiVersion: fluxninja.com/v1alpha1
kind: Policy
metadata:
  labels:
    fluxninja.com/validate: "true"
  name: workload-prioritization
spec:
  circuit:
    components:
    - flow_control:
        aimd_load_scheduler:
          dry_run: false
          dry_run_config_key: dry_run
          in_ports:
            overload_confirmation:
              constant_signal:
                value: 1
            setpoint:
              signal_name: SETPOINT
            signal:
              signal_name: SIGNAL
          out_ports:
            desired_load_multiplier:
              signal_name: DESIRED_LOAD_MULTIPLIER
            observed_load_multiplier:
              signal_name: OBSERVED_LOAD_MULTIPLIER
          parameters:
            alerter:
              alert_name: AIMD Load Throttling Event
            gradient:
              max_gradient: 1
              min_gradient: 0.1
              slope: -1
            load_multiplier_linear_increment: 0.025
            load_scheduler:
              scheduler:
                workloads:
                - label_matcher:
                    match_labels:
                      http.request.header.user_type: guest
                  parameters:
                    priority: 50
                - label_matcher:
                    match_labels:
                      http.request.header.user_type: subscriber
                  parameters:
                    priority: 200
              selectors:
              - control_point: ingress
                service: cart-service.prod.svc.cluster.local
            max_load_multiplier: 2
    - query:
        promql:
          evaluation_interval: 10s
          out_ports:
            output:
              signal_name: SIGNAL
          query_string: sum(increase(flux_meter_sum{flow_status="OK", flux_meter_name="workload-prioritization",
            policy_name="workload-prioritization"}[30s]))/sum(increase(flux_meter_count{flow_status="OK",
            flux_meter_name="workload-prioritization", policy_name="workload-prioritization"}[30s]))
    - query:
        promql:
          evaluation_interval: 30s
          out_ports:
            output:
              signal_name: SIGNAL_LONG_TERM
          query_string: sum(increase(flux_meter_sum{flow_status="OK", flux_meter_name="workload-prioritization",
            policy_name="workload-prioritization"}[1800s]))/sum(increase(flux_meter_count{flow_status="OK",
            flux_meter_name="workload-prioritization", policy_name="workload-prioritization"}[1800s]))
    - arithmetic_combinator:
        in_ports:
          lhs:
            signal_name: SIGNAL_LONG_TERM
          rhs:
            constant_signal:
              value: 1.1
        operator: mul
        out_ports:
          output:
            signal_name: SETPOINT
    evaluation_interval: 1s
  resources:
    flow_control:
      classifiers: []
      flux_meters:
        workload-prioritization:
          selectors:
          - control_point: ingress
            service: cart-service.prod.svc.cluster.local
    infra_meters: {}

info

Circuit Diagram for this policy.

Installation

Generate a values file specific to the policy. This can be achieved using the command provided below.

aperturectl blueprints values --name=load-scheduling/average-latency --version=v2.32.2 --output-file=values.yaml

Apply the policy using the aperturectl CLI or kubectl.

aperturectl (Aperture Cloud)

aperturectl cloud blueprints apply --values-file=values.yaml

aperturectl (self-hosted controller)

Pass the --kube flag with aperturectl to directly apply the generated policy on a Kubernetes cluster in the namespace where the Aperture Controller is installed.

aperturectl blueprints generate --values-file=values.yaml --output-dir=policy-gen
aperturectl apply policy --file=policy-gen/policies/workload-prioritization.yaml --kube


kubectl (self-hosted controller)

Apply the generated policy YAML (Kubernetes Custom Resource) with kubectl.

aperturectl blueprints generate --values-file=values.yaml --output-dir=policy-gen
kubectl apply -f policy-gen/policies/workload-prioritization-cr.yaml -n aperture-controller


Policy in Action

To see the policy in action, the traffic is generated such that it starts within the service's capacity and then goes beyond the capacity after some time. Such a traffic pattern is repeated periodically. The below dashboard demonstrates that when latency spikes due to high traffic at cart-service.prod.svc.cluster.local, the Controller throttles the rate of requests admitted into the service. This approach helps protect the service from becoming unresponsive and maintains the current latency within the tolerance limit (1.1) of historical latency.

Dry Run Mode

You can run this policy in the Dry Run mode by setting the policy.load_scheduling_core.dry_run parameter to true. In the Dry Run mode, the policy does not throttle the request rate while still evaluating the decisions it would take in each cycle. This is useful for evaluating the policy without impacting the service.

note

The Dry Run mode can also be toggled dynamically at runtime, without reloading the policy.

Demo Video

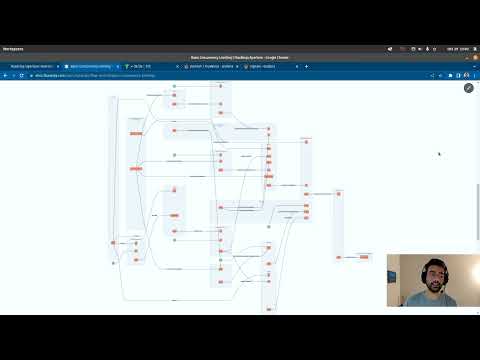

The below demo video shows the basic service protection and workload prioritization policy in action within Aperture Playground.
